Production of Optical Fibers

Optical fibers serve multiple applications, from high speed fiver optic telecommunications to medical and industrial. The following information provides a short introduction into the different challenges associated with the manufacturing of optical and specialty fibers.

Generally, optical fibers are made by drawing a thin strand of glass from a specifically designed glass rod (called a preform). The fiber is coated with a protective acrylate layer and then tested for various properties.

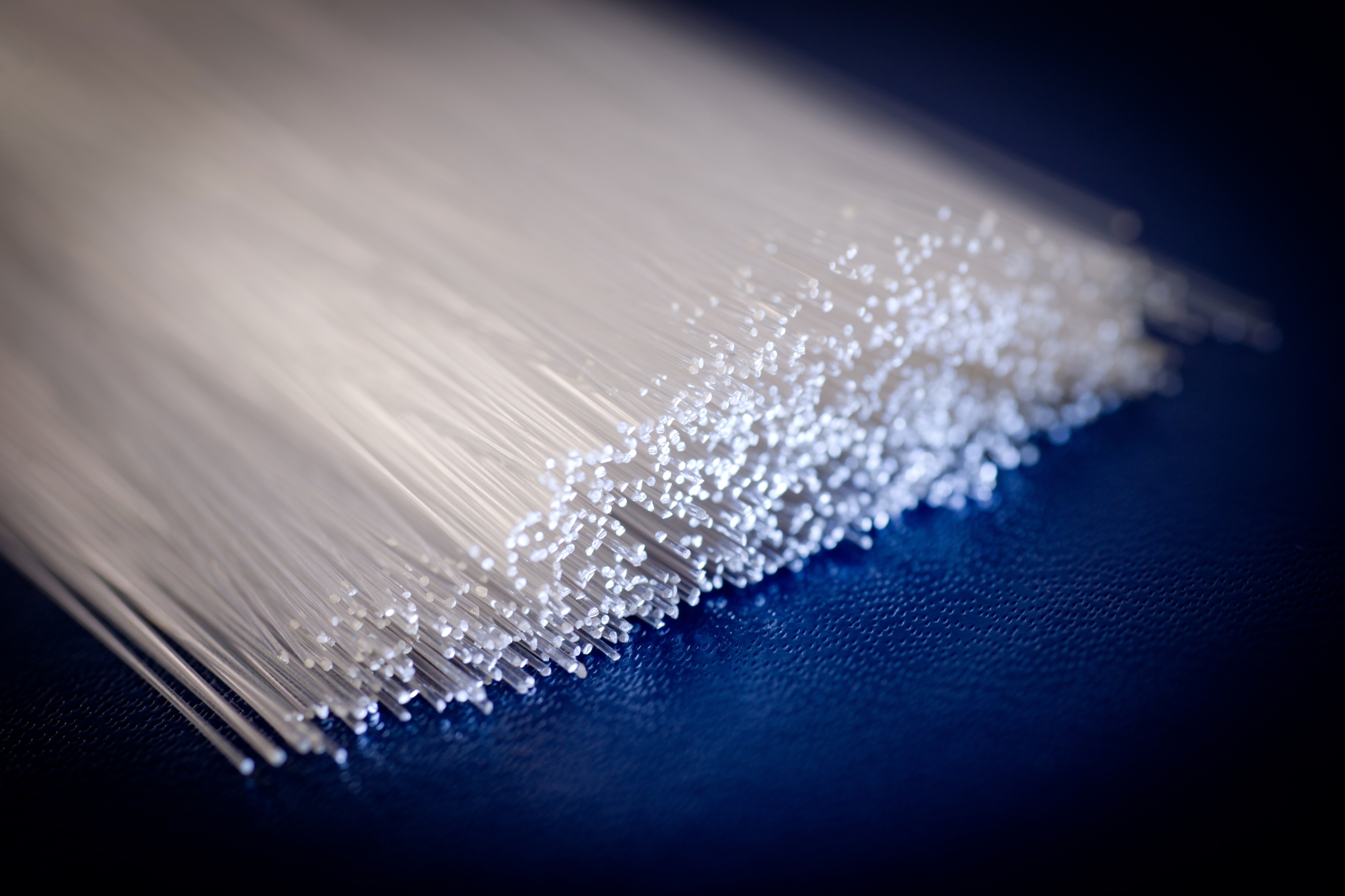

A bundle of light transmitting optical fibers

How do optical fibers work?

Optical fibers consist of a light guiding core and a cladding. The core must have a higher refractive index than the surrounding cladding so that the light internally reflects at the interface between core and cladding. This reflection guides the light along the length of the fiber with extremely low attenuation. The important properties are the difference in refractive index and the NA (numerical aperture) of the fiber which is the angle under which light that enters one end of the fiber is still guided to the end. There are numerous possibilities for optical fiber designs and applications, from large volume standardized telecommunication fiber to very individual designs that serve one customer in a specific application.

  • Custom designed optical fibers

    Many applications require the transportation of light from one location to another without line of sight, or where it is impractical or dangerous to have an open beam. In this case an optical fiber is the ideal solution because it can bend and move, yet keep the two locations connected. A few examples of these applications include medical and spectroscopic applications as well as material processing.

    For each application the right optical fiber depends on its transmission characteristics and the shape of the beam that exits the fiber. These two properties depend on the refractive index profile, material composition and geometrical shape of a fiber. Learn more about how these parameters influence the transmission in the details below. While these three properties represent a high degree of freedom to realize the customer needs, a lot of knowledge is necessary to achieve the optimal solution.

    Optical fibers for laser processing

    Automotive applications (laser cutting and welding)

    Fiber bundles

    Specialty fiber bundles (e.g. beam homogenization for photolithography and spot curing of UV adhesives)

    Optical fibers for medical applications

    Medical laser surgery (e.g. ablation of arterial blockage or vaporization of prostate tissue to treat BPH)

    Optical fibers for spectroscopy

    Spectroscopy from UV, to VIS, to NIR ranges

Preform design

A preform is a bigger solid version of a fiber. The fiber is drawn from the preform and should have all the properties the preform had. The minimum requirement of a preform is that its center, which later forms the core of the fiber, is made of a glass with a higher refractive index than the glass that makes up the cladding.

In essence, the performance of the fiber depends on the material composition, the geometry and the refractive index of the different layers. At Heraeus we combine our accumulated fused silica know-how and processes that we combine to realize your ideas.

  • Material composition

    Pure fused silica without any impurities has excellent transmission over a broad spectral range. Doping can modify transmission but can also be effected by unwanted impurities. Furthermore, dedicated doping can modify the refractive index of the material.

    For example, a material with high hydroxyl content is the material of choice for transmission in the UV range. For transmission in infra-red wavelengths, a material with low hydroxyl content is required.

    Furthermore, using rare earth elements for doping in the core of a fiber can amplify the light. These fibers are called active fiber or laser fiber.

  • Refractive index profile

    To transmit light through a waveguide requires a two-layer structure first. A core with a higher refractive index than the outer cladding. This can be achieved either by doping the core with elements which increase the refractive index, e.g. with germanium like in telecommunication fibers, or by doping the cladding with elements like fluorine which lowers the refractive index.

    The height of the refractive index step defines how confined the guided light is in the core and how many different modes (pathways of the light through the fiber) there are.

    The layer thickness of the cladding also influences the guiding properties as always some light penetrates into the cladding. If the layer is too thin some light gets lost, especially if the fiber is bent.

    In modern designs the refractive index profile shows several layers with different optical functions, e.g. to create a ring shape instead of a single spot or to create a pump cladding for laser fibers.

  • Geometry

    The geometry is another factor defining the transmission properties. Some examples are given below:

    Shape
    A square shaped core in a multi-mode fiber will cause a mixing of the different light modes transmitted. Therefore the light energy density of the cross section of this fiber will be more homogenous.
    Laser fibers often use an unsymmetrical cladding for guiding the pump light. The broken symmetry suppresses helix modes and increases the pump efficiency.

    Distances
    The layer thickness within a fiber design determines whether the light is guided or stripped off. A thin layer, for example, is useful for stripping some unwanted modes of light.
    In polarization, fiber stress elements maintain a position beside the core. These often boron doped elements have a different thermal expansion and introduce therefore a mechanical stress which modifies the transmission properties. The distance of the stress elements from the core influence the amount of stress.

Typically there are two major steps in preform production. First the production of the light-guiding core and possibly a first cladding, to produce what is called a core rod. In a second step, the cladding is produced either separately or directly on the core rod.
